Cocoa
Scientific name:
Theobroma cacao
Order/Family:
Malvales: Sterculiaceae
Pests and Diseases:
Aphids  Cocoa bud or black rot  Fruit flies  Helopeltis bugs  Leafhoppers  Mealybugs  Pod borers  Pod rot  Snails (Giant East African Snail)  Spiny bollworm  Thrips  Ants, Anthracnose

Cocoa bud rot or Cocoa black rot (Phytophthora palmivora)

It is a foot rot disease caused by the fungus (Phytophthora palmivora) which results in large pod losses in West Africa and stem canker in Trinitario populations.

Cocoa bud rot attacks the whole plant. On pods, the disease begins with a circular brown lesion that enlarges to cover the whole pod. It eventually becomes black and mummified, and sometimes covered in a white mass of fungal growth (sporangia). Stem cankers are characterised by oval to round, rusty-brown discolouration of the external bark that looks purple when scraped. Attack of young shoots results in die-back.

Regular harvesting plays the greatest role, as it reduces spread to other pods and bark where stem canker and flower cushion infections may develop.


What to do:
  • Harvest pods regularly and remove diseased pods.
  • Thin canopy to improve airflow and reduce humidity.
  • Space planting in well drained sites.
  • Avoid infested soil.
Cocoa black rot / bud rot
© Jürgen Kranz (Courtesy of EcoPort, www.ecoport.org)

Fruit flies

Two species of fruit flies (Bactrocera invadens and Ceratitis rosa) attack banana in Kenya. Bactrocera invadens is a new species recently discovered in Africa, its 2-3mm in size. This fruit fly is reported attacking banana in Sudan and Kenya and it is a major threat since it leads to rejection of banana in the export market.

One of the most effective control techniques against fruit flies in general is to wrap fruit, either in newspaper, a paper bag, or in the case of long/thin fruits, a polythene sleeve. This is a simple physical barrier to oviposition but it has to be applied well before the fruit is attacked. Little information is available on the attack time for most fruits, but few Bactrocera spp. attack prior to ripening.

Infected fruit on the ground will act as reservoir for re-infestation. If infested fruit reaches the market then maggot infested fruit will be discarded, so allowing emerging adults access to new crop areas.

Mediterranean fruit fly
© Scott Bauer, USDA Agricultural Research Service, www.insectimages.org

Helopeltis bugs (Helopeltis schoutedeni)

The cocoa mosquito (Helopeltis schoutedeni) also known as Helopeltis bug or mirid bugs are slender, delicate insects, about 7- 10 mm long with long legs and antennae, the antenna being nearly twice as long as the body. The females are red and the males brown to yellowish red. They lay eggs inserted into the soft tissue near the tips of flowering or vegetative shoots. Nymphs (immature bugs) are yellowish in colour. Both adults and nymphs feed on young leaves, young vegetative and flowering shoots, and developing fruits.

Typical feeding damage of Helopeltis species appears as a discoloured, necrotic (blackened) area or lesion around the affected plant tissue.

Heavy infestations by Helopeltis species can result in pod malformations and premature drop, thus providing a venue for secondary infection by microorganisms and serving to attract other pests to cacao.

What to do:
  • Monitor the crop regularly. Helopeltis attack occurs very suddenly and great vigilance is very important to control this pest, particularly during the rainy season or when water is available leading to flushing (production of young shoots) when Helopeltis populations normally build up.
  • Conserve natural enemies. Weaver ants build nests on cashew trees providing good protection against this and other bug pests.
  • Do not interplant cocoa with crops that are host for Helopeltis bugs, such as cashew, tea, sweet potato, guava, cotton and mango.
  • Cultural practices including pruning, weeding and shading schemes have been used in the control of cocoa-mosquito.
Helopeltis bug
© F. Haas, icipe

Helopeltis…

Helopeltis…

Leafhoppers (Empoasca spp)

Adult leafhoppers are small about 2 to 3 mm long and thin. The wings are held roof like over the abdomen. They are pale green to yellowish green in colour, shiny and more or less transparent. The legs are slender with bristles. The nymphs resemble the adults but are smaller and do not have fully developed wings. Adults and nymphs suck sap from the leaves, remaining on the underside during the day, but also moving to the upper surface during the evening. When disturbed they run sideways rapidly to reach a shady part of the host plant.

Feeding by leafhoppers causes discolouration, and leaf curl, the outer zone of the leaf turn yellow to reddish and whither later. Heavy leafhopper infestation may retard plant growth and may cause severe yield losses. In Africa, leafhopper damage is usually minor and does not warrant control.

What to do:
  • Look for leafhoppers on the undersides of leaves.
  • Wash nymphs from plants with a strong jet of water. Wash the undersides of the leaves in particular.
  • Set out yellow sticky traps near the infested plants if the infestation is severe. For more information on sticky traps click here
  • If necessary spray insecticidal soap, neem or pyrethrum.
Leafhoppers
© Steve L. Brown, University of Georgia, Bugwood.org

Mealybugs

Mealybugs infest fruits and foliage. They can be serious pests in the warm season, if natural enemies, which usually control them, are destroyed by spraying with pesticides.

What to do:
  • Conserve natural enemies. Mealybugs are usually controlled by a wide range of natural enemies. However, use of pesticides may kill these natural enemies leading to mealybug outbreaks.
Mealybugs
© A.M. Varela, icipe

Pod-borers (Characoma stictigrapta)

Pod-borers are serious pests of cocoa. The pod husk borer (Characoma stictigrapta) for example, occurs in West Africa.

The damage is done by the larva which bores holes into pods of all sizes. It produces a mass of frass held together by silk at the entrance of the holes. If the pod is very young and soft (cherelle) then it wilts. The insect is usually not controlled.

What to do:
  • Simple cultural methods, such as adjustment of shading level or improved soil drainage, will contain many of the most troublesome pests including pod borer.
Pod-borer
© www.dropdata.net

Pod-borer

Pod-borer

Pod rot of cocoa (Lasiodiplodia theobromae)

In cocoa pod rot the infected tissue shows brown necrosis with dark brown powdery spore masses. Such infected tissues show greyish-black mycelia.

The fungus is most important as a cause of postharvest food decay. It also causes damage in cocoa in the form of dieback disease.


The spiny bollworm (Earias biplaga)

It feeds on a wide range of plants and also attacks cocoa. It may prefer wild hosts to crops. If crops are grown while wild hosts are available nearby, the crops may not be badly affected. Wild hosts will also maintain a supply of natural enemies.

The larva eats the growing tips of the stems and young soft leaves. It's feeding activity prevents the plant from growing properly to form canopy.

The attack is more where there is no shade over the cocoa. It's attack therefore may be prevented if fast growing shade trees are provided over cocoa that has been freshly planted.

What to do:
  • Adjust shading level
  • Improve soil drainage
Spiny bollworm
© A.M. Varela, icipe

Spiny boll…

Spiny boll…

Red-banded thrips (Selenothrips rubrocinctus)

Adults of the red banded thrips are dark brown or blackish. Nymphs are pale yellow with a broad transverse red band on the dorsal side of the abdomen. Thrips attack older leaves, flowers and shoots. Attacked leaves drop off leaving bare shoots with few young leaves at the tip. Infestation of flowers causes poor fruit formation. Locally limited infestations may cause considerable damage.

What to do:
  • Conserve natural enemies. Anthocorid bugs are important in natural control of thrips.
Red-banded thrips
© A. M. Varela, icipe
General Information and Agronomic Aspects
Geographical Distribution of Cocoa in Africa
The crop was known to the Aztecs, who relished it as a "drink of the Gods". The cocoa seeds are highly rich in fat content, and therefore provide an energy-rich and delicious foodstuff.
Today, cocoa is cultivated in all humid, tropical countries.

The main products made from cocoa beans are chocolate, cocoa powder and butterfat, which are all used for human consumption. Butterfat is also used in cosmetics and pharmaceutical products but the amount used for these purposes is insignificant in relation to that used in chocolate manufacture. On the international market, raw cocoa (dried cocoa seeds) is the most sought product, which is used for production of cocoa butter, chocolate, and cocoa powder.










Nutritive Value per 100 g of edible Portion
Raw or Cooked Cocoa Food
Energy
(Calories / %Daily Value*)
Carbohydrates
(g / %DV)
Fat
(g / %DV)
Protein
(g / %DV)
Calcium
(g / %DV)
Phosphorus
(mg / %DV)
Iron
(mg / %DV)
Potassium
(mg / %DV)
Vitamin A
(I.U)
Vitamin C
(I.U)
Vitamin B 6
(I.U)
Vitamin B 12
(I.U)
Thiamine
(mg / %DV)
Riboflavin
(mg / %DV)
Ash
(g / %DV)
Cocoa Powder unsweetened 228 / 11% 57.9 / 19% 13.7 / 21% 19.6 / 39% 128 / 13% 734 / 73% 13.9 / 77% 1524 / 44% 0.0 IU / 0% 0.0 / 0% 0.1 / 6% 0.0 / 0% 0.1 / 6% 0.2 / 14% 5.8
*Percent Daily Values (DV) are based on a 2000 calorie diet. Your daily values may be higher or lower, depending on your calorie needs.


Climate conditions, soil and water management
Cocoa grows in the primary forests in the so-called under-storey and is associated with a variety of palm species, as well as a number of other different tree varieties. For example, with tree varieties stemming from the upper storey in rain forests, among them mainly single trees overtopping the forest canopy which lose their foliage during the months of shorter daylight hours. The resulting increase in light encourages the development of the cocoa blossoms, and the falling leaves an enrichment of organic material.

With an even annual distribution of rainfall (100 mm per month), the plantations can survive on 1250 mm per year. Short drought periods can be compensated for by heavy clouds and high humidity. The average annual temperature should be around 25°C. In regions with extensive wet periods or large seasonal temperature fluctuations, the harvesting periods are reduced to only a few months per year. In regions with a balanced climate, and only slight temperature and rainfall fluctuations, cocoa produces fruit practically throughout the year. Cocoa is thus a typical crop of the tropical lowlands. It can also be grown at higher altitudes if other conditions are favourable. Especially in areas without a dry season, cocoa has shown to develop more quickly than in the major production areas of West Africa, where growth is stopped by drought during certain months of the year.

The soil on cocoa plantations should be deep, well-drained, and have sufficient water-retaining capacity. Soils with a high available moisture-storage capacity can compensate for periodic lack of rain, while excessive rainfall will cause fewer problems on well-drained soils. The pH-value should lie between 4.0 and 7.5. Care must be taken that sufficient organic material is available.
Cocoa trees can live for over 100 years. Naturally occurring cocoa crops propagate themselves through lateral shoots, which can occur at any height on the trunk. The natural vegetative proliferation occurs when the seeds are spread by small rodents and apes.


Propagation and planting
When choosing the site for a new plantation, the natural site requirements of cocoa should be adhered to. Ideal sites are those with alluvial soils, which are not susceptible to water-logging. Other suitable sites include irrigated form wells, and in hollows. Unsuitable sites are steep and convex slopes. When you create a new plantation, take care to reproduce as closely as possible the natural structure of forests. This means that all of the varieties that are to be cultivated along with cocoa in the agro eco-system should be planted at the same time (or even beforehand) as the cocoa. The best method is to leave an area free for natural growth, and to plant tall-growing trees which will rapidly provide cover, such as bananas and manioc, and to plant the cocoa in-between them at a later date. This way, the biological activity of the soil is maintained, and the mycorrhiza of the cocoa can begin to develop immediately.

Cocoa is usually planted as seedlings, which are easy and cheap to produce. Vegetative propagation by rooted cuttings or budding is used to establish seed gardens. Seedlings are usually raised in polythene bags in a shaded nursery. Young plants are planted in the field 3 - 4 m apart or about 1100 trees/ha at an age of 4 - 6 months. Young trees need shade to reduce irradiance, to buffer the microenvironment and to promote the right shape and habit of the trees. When a closed canopy has been formed, the need for shade is reduced. Only under most favourable conditions of soil and nutrient supply can cocoa be grown without shade. It is normally necessary to retain some shade to reduce moisture stress and incidence of insect damage in order to prolong the economic life of plantations.

Shade can be provided either by thinning forest or by planting shade trees. Shade trees are common in South-East Asia, where mainly seedless Leucaena leucocephala and Mother of cocoa (Gliricidia sepium) are used. Often, hedges of leguminous shrubs are used for temporary side-protection between rows and as a source of mulch. Cocoa is also grown as an intercrop under coconuts.

Budding of cocoa plants
© Putter CA (Courtesy of EcoPort, www.ecoport.org)

Organic fertilisation strategies
It is not advisable to use fertiliser that has not originated from the site's production, also of organic origin, because the costs are simply too high. Creating organic material through mulching and pruning activities is sufficient for an economically viable production, provided a stratified (multi-phase), diverse and densely planted system is in place.
Any shells that are left over after the harvest must remain on the plantation. This means that the fruits should be broken open on site, if possible. The resulting shell material should be spread as evenly as possible. The cocoa pods harvested on a plot are first piled into a heap, and then broken open to provide around 50 kg of fresh cocoa. The cocoa pods should then be piled onto a different heap during the next harvest stage, and broken open there.

Many varieties of palms are capable of actively breaking down phosphorus, as well as binding heavy metals in the soil, which thereby reduces the amounts absorbed by the cocoa plants. This can be useful, because the amount of heavy metals in the cocoa seeds can be problematic. It is therefore recommended to integrate suitable palm varieties into the plantation.


Husbandry
During the first 3 years, selective weeding is required, whereby grasses are removed, and flowering weeds cut down to be used as mulching material. Trees which do not loose their leaves need to be radically trimmed during the blossoming period of the cocoa (about 6 months before the main harvest begins), in order to increase the amount of light. The resulting organic material should then be chopped and spread out over the soil. Diseased plant parts and pods should be removed. The cocoa trees should also be lightly trimmed, and diseased or poorly developed trees removed (in cases of direct sowing), during these shading regulation tasks.
Once the canopy has closed, lack of light will prevent weed growth. Young trees need no pruning during the first 2 - 3 years. Later, low-hanging branches should be pruned to facilitate harvesting. Vertical growth is usually restricted to the first jorquette (fan of branches). If the first jorquette is formed too low (below a height of 1.5 m), the tree is allowed to make a second one. To retain trees at the desired height, cocoa seedlings (chupons) should be removed at regular intervals.


Diversification strategies for cocoa

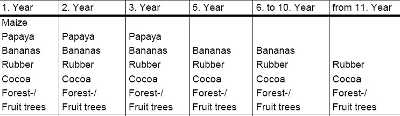

Diversification strategies for Cocoa 1
© Naturland e.V. (www.naturland.de)

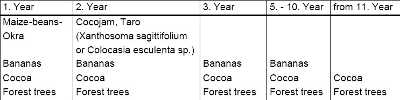

Diversification strategies for Cocoa 2
© Naturland e.V. (www.naturland.de)

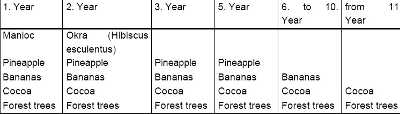

Diversification strategies for Cocoa 3
© Naturland e.V. (www.naturland.de)

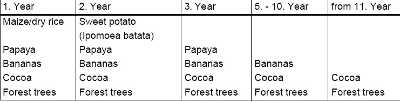

Diversification strategies for Cocoa 4
© Naturland e.V. (www.naturland.de)


Rice as well as maize can be sown as a pioneer crop, depending on the starting conditions (soil fertility, market access, consumer habits, etc.), simultaneously with manioc (Manihot esculentum), new coco-jam (Xanthosoma sagittifolium) in Nigeria and Cameroon and pigeon peas (Cajanus cajan).
Before a pioneer crop is sown, bananas should be planted. The distance between each plant depends on the distances between the individual cocoa plants and the variety of banana. Along with standard commercial varieties of banana from the Cavendish group, other tall-growing local varieties which can tolerate shade should also be integrated into the plantation. The number of cocoa trees should lie between 600 and 1100 trees per ha.

During the first few years, on fertile soils, papaya (Carica papaya) can also be cultivated in addition to bananas within the system (2 x 2 m). Together with the papaya seeds or bananas, trees growing up to the middle storey (such as Inga ssp., Erytrina ssp., Gliricida sepium) as well as growing up to the upper storey must also be planted. This can be in seed form. Only in the cases of certain varieties (such as palm varieties that are old, or difficult to germinate), should the trees be first sown in a tree nursery. The choice of tree depends on which varieties are available in the region. In addition to the varieties listed above, it is recommended to integrate palm species at a density of 100-150 trees per ha in organic cultivation systems.
Many combinations are possible, in which other fruit trees such as avocado, jackfruit and many more can be integrated.

Monoculture plantations that already exist, and which have only very few shading trees can be improved. The best method is to re-forest wrongly cultivated spots, and also spaces that become available after unproductive single plants have been removed.


Harvesting
The most essential quality characteristics of cocoa depend on the correct processing, which begins with the harvesting process and ends with the storage method. Pod development from setting to maturity takes about 6 months. The harvest can begin when the pods are completely ripe. In many Trinitario types, with their red and dark violet pods, this can be recognised by an orange discolouring of the shell. Yet other varieties take on a yellow colouration when ripe.
Depending on the region and weather conditions, there are usually 1 or 2 harvesting phases, which are spread out over several months. In order to achieve a uniform ripeness of the pods harvested, it is wise to harvest all of the ripened pods every 2-3 weeks. During peak production, pods are harvested each week. The best way to avoid harming the bark is to cut off the pods at the base of the blossom with a sharp knife or other suitable instrument.


Storage
Cocoa can be stored for years in temperate climates without fear. In the moist tropics on the other hand, the high temperatures and humidity cause a rapid infestation by storage pests and infection with mould fungi. Because cocoa is strongly hygroscopic, even a product that has been well dried can rise in moisture content up to 10% in regions with 80-90% humidity, and thereby lose its capacity to be stored. The critical moisture content for storage is 8%.

The cocoa should be stored in air-permeable sacks on the production site for only a short time, whereby the sacks should be stacked on wooden planks or boards. The use of sacks made of organic material (jute) should be avoided, if these have been treated with pesticides. The cocoa butter part in the cocoa shell is an excellent solvent for chlorinated hydrocarbons which can diffuse through the outer shell when they come into contact with it, and into the cocoa seed. In such cases, tests have then shown limits for certain agricultural poisons being exceeded - although no pesticides had ever been used on the site.

The storage area should always be well-ventilated - the inside temperature should remain below the outside temperature.

On conventional plantations, it is quite usual to gas the cocoa with methyl bromide in order to protect them against storage pests. However, it is now not allowed to use methyl bromide. In addition, tetraline soap, hydrogen phosphide and prussic acid are also used. On organic cocoa plantations, it is not permitted to use either insecticides against storage pests, or to gas the beans.

Cocoa beans should be stored in dark, dry and well-ventilated rooms at low temperatures.
Short-term storage: about 16°C; relative humidity: 55%
Long-term storage: about 11°C; relative humidity: 55

Information on Diseases
Biological methods of plant protection
    Most diseases are caused by the following:

  • Cultivation in monocropping systems with no or only very few varieties and number of shading trees (on conventional plantations, 25-40 trees of mostly one variety per ha recommended)
  • Ignoring the natural rotation of the forest system. For example, cocoa plantations which grow beneath old shading trees from the secondary forest system (mostly Inga ssp., Gliricidia sepium etc.), are highly susceptible to diseases and pests. Cocoa, as a plant from the primary forest, can tolerate old primary forest trees above it, yet not trees from the secondary forest system.
  • Too little distance between the different varieties in a system which have the same status; failure to thin out the agroforestry system
  • Degraded and poor soils, lack of organic material
  • Unsuitable site (water-logging, too dry, no possibility for deep root development)


Effective measures are often only possible in the form of improvements to the whole system. One possibility lies in radically cutting back the trees and subsequently replacing them with the correct varieties, or, with a complete renewal measure, whereby the trees are sawn down to a stump of around 40 cm. One to 3 of the resulting shoots which develop out of the stumps are left to develop. Opening up the plantation allows many new varieties to be included.

A tolerable loss at harvest time, which is also heavily dependant on weather conditions, is often caused by the fungus (Phytophtora palmivora). In addition to the measures described here, regular harvesting, which should then include diseased fruit, can reduce the infestation (many farmers only harvest the healthy fruits). In the case of a heavy infestation by Phytophtora palmivora, harvest losses can be alleviated with Bordeaux mixture, or other spray preparations containing copper, that are permitted on organic plantations. These methods should only be used in emergencies.

Examples of Cocoa Diseases and Organic Control Methods
Fungal diseases are of major importance both to the trees and the pods, although cocoa types show a wide range of susceptibility.

Fungal infections are caused by Botryodiplodia theobromae, Colletotrichum sp. (anthracnose) and Trachysphaera fructigena. On cocoa, infection with T. fructigena is an insignificant component of pod diseases.

Information on Pests
Biological methods of plant protection
Organic pest and disease management places priority on indirect control methods. Direct control methods are applied as a second priority.

A variety of insect pests are important during establishment, because they destroy the apical bud and delay or prevent canopy formation. In mature cocoa, mirids (Helopeltis and other regionally specific genera) are the major widely represented insect pests, causing severe damage to twigs, branches and young pods.

An infestation by pests in a cocoa plantation has the same causes as diseases which affect a system. The causes are listed under 'diseases'.

The losses caused by these pests world-wide is enormous. They result from the cocoa fruits being sucked dry in all stages of growth, after which, the plant dies off, depending to the amount of damage done.

Without losing sight of the need to combat the root causes, a solution which can be immediately utilised to save a harvest is by spraying with a 3% alkaline soap solution (potassium soap), which has proven itself in Bolivia in regulating different bug varieties. In addition, other preparations being permitted on organic farms can also be used.

Some common pests of cocoa are:
  • Mealybugs (Planococcus, Stictococcus in Africa)
  • Bollworms and various other psyllids
  • Leafhoppers
  • Thrips (Selenothrips rubrocinctus, Heliothrips rubrocinctus)
  • Leaf cutter ants (Atta ssp.)

Examples of Cocoa Pests and Organic Control Methods
Information Source Links
  • CAB International (2005). Crop Protection Compendium, 2005 edition. Wallingford, UK www.cabi.org
  • Naturland e.V. (2000). Organic Farming in the Tropics and Subtropics. Exemplary description of 20 crops. Cocoa. www.naturland.de
  • Nutrition Data www.nutritiondata.com.
